Consistent Architecture, Multi-Gig Throughput

The PA-3000 Series next-generation firewalls prevent threats and safely enable applications. The series includes the PA-3060, PA-3050, and PA-3020, which are based on the same architectural foundation as all of our next-generation firewalls.

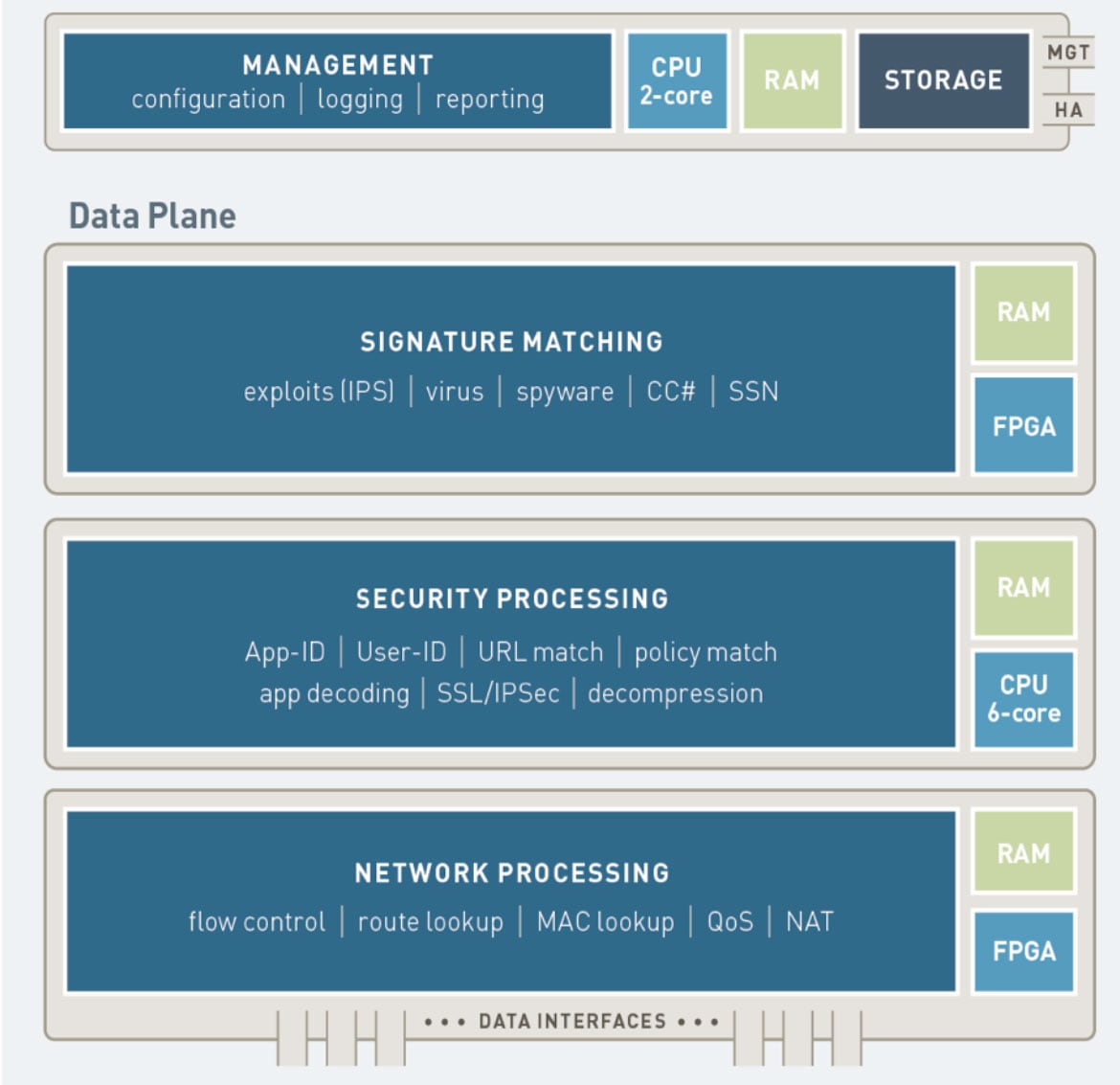

The PA-3000 Series enables you to secure your organization through advanced visibility and control of applications, users, and content at throughput speeds of up to 4 Gbps. Dedicated computing and programmable hardware resources assigned to networking, security, signature matching, and management functions ensure predictable performance.

PA-3060

  • 4 Gbps firewall throughput
    (App-ID enabled1)
  • 2 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 500,000 max sessions
  • 50,000 new sessions per second
  • 2,000 IPSec VPN tunnels/tunnel interfaces
  • 2,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max2)
  • 40 security zones
  • 5,000 max number of policies

PA-3050

  • 4 Gbps firewall throughput
    (App-ID enabled1)
  • 2 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 500,000 max sessions
  • 50,000 new sessions per second
  • 2,000 IPSec VPN tunnels/tunnel interfaces
  • 2,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max2)
  • 40 security zones
  • 5,000 max number of policies

PA-3020

  • 2 Gbps firewall throughput
    (App-ID enabled1)
  • 1 Gbps threat prevention throughput
  • 500 Mbps IPSec VPN throughput
  • 250,000 max sessions
  • 50,000 new sessions per second
  • 1,000 IPSec VPN tunnels/tunnel interfaces
  • 1,000 SSL VPN Users
  • 10 virtual routers
  • 1/6 virtual systems (base/max2)
  • 40 security zones
  • 2,500 max number of policies
