What Is a Hardware Firewall? How It Works + When to Use One

5 min. read
Table of contents

A hardware firewall is a dedicated physical device that enforces security policies by filtering traffic between trusted and untrusted networks. It inspects packets as they pass through network boundaries and allows or blocks them based on defined rules.

Its functions are delivered through dedicated hardware and a purpose-built operating system designed for consistent performance as a stand-alone appliance.



How does a hardware firewall work?

A hardware firewall works as a stand-alone appliance placed at the edge of a network.

Here's an example of what it can look like:

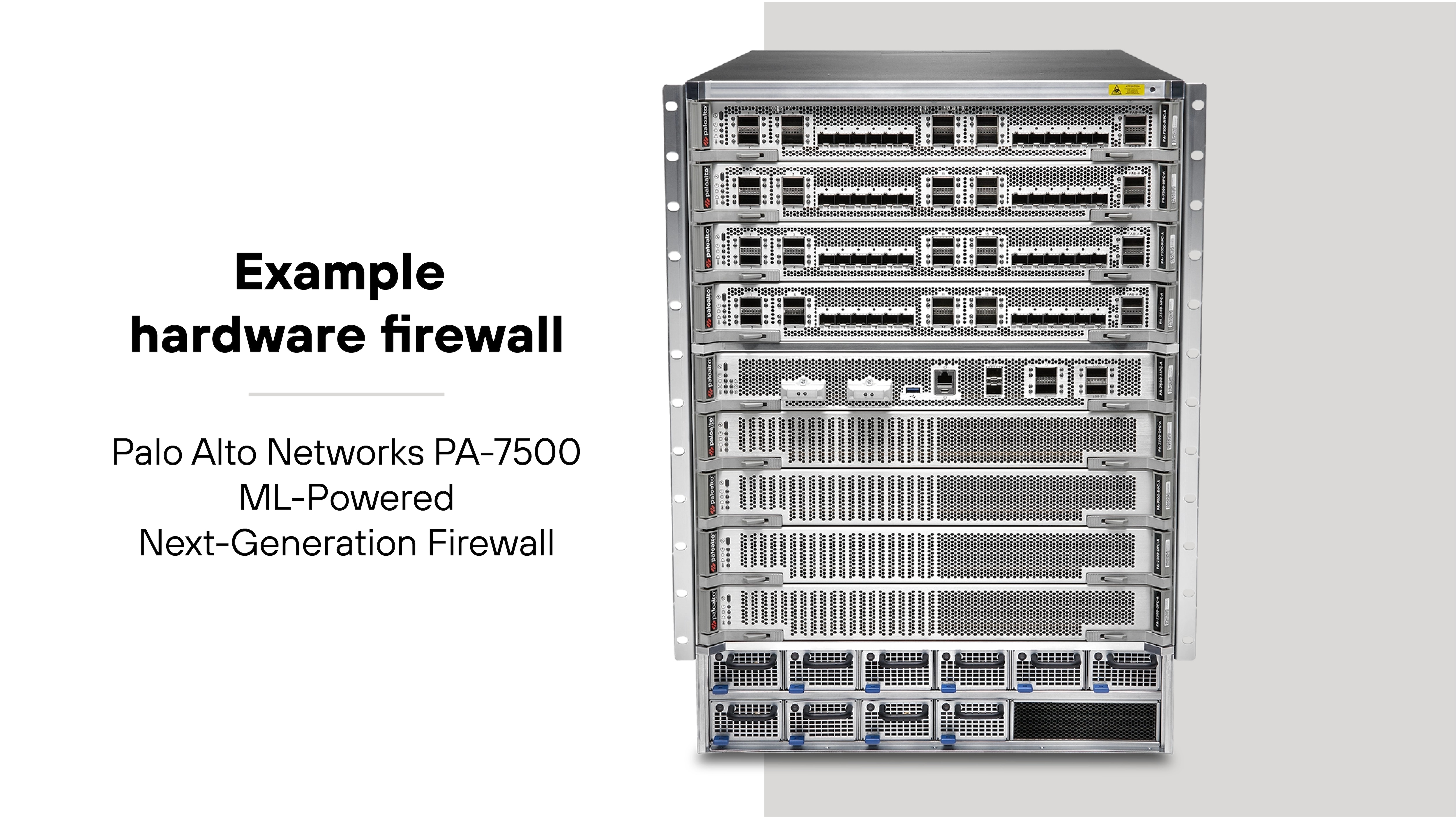

The image shows a large metal hardware firewall appliance with multiple horizontal slots stacked vertically, each containing rows of network ports and indicator lights. The chassis is silver with black vented panels, and the bottom section has several cooling fans arranged in a grid. To the left of the device, text reads 'Example hardware firewall' in bold black font, with smaller text below stating 'Palo Alto Networks PA-7500 ML-Powered Next-Generation Firewall'.

A hardware firewall has its own processors, memory, interfaces, and operating system that are dedicated entirely to inspecting and controlling traffic. All packets entering or leaving the protected network must flow through its physical ports, which means the device becomes the checkpoint between trusted and untrusted zones.

The firewall enforces security rules as traffic passes through. At a basic level, it uses packet filtering to compare header information such as addresses and ports against an approved rule set.

Like so:

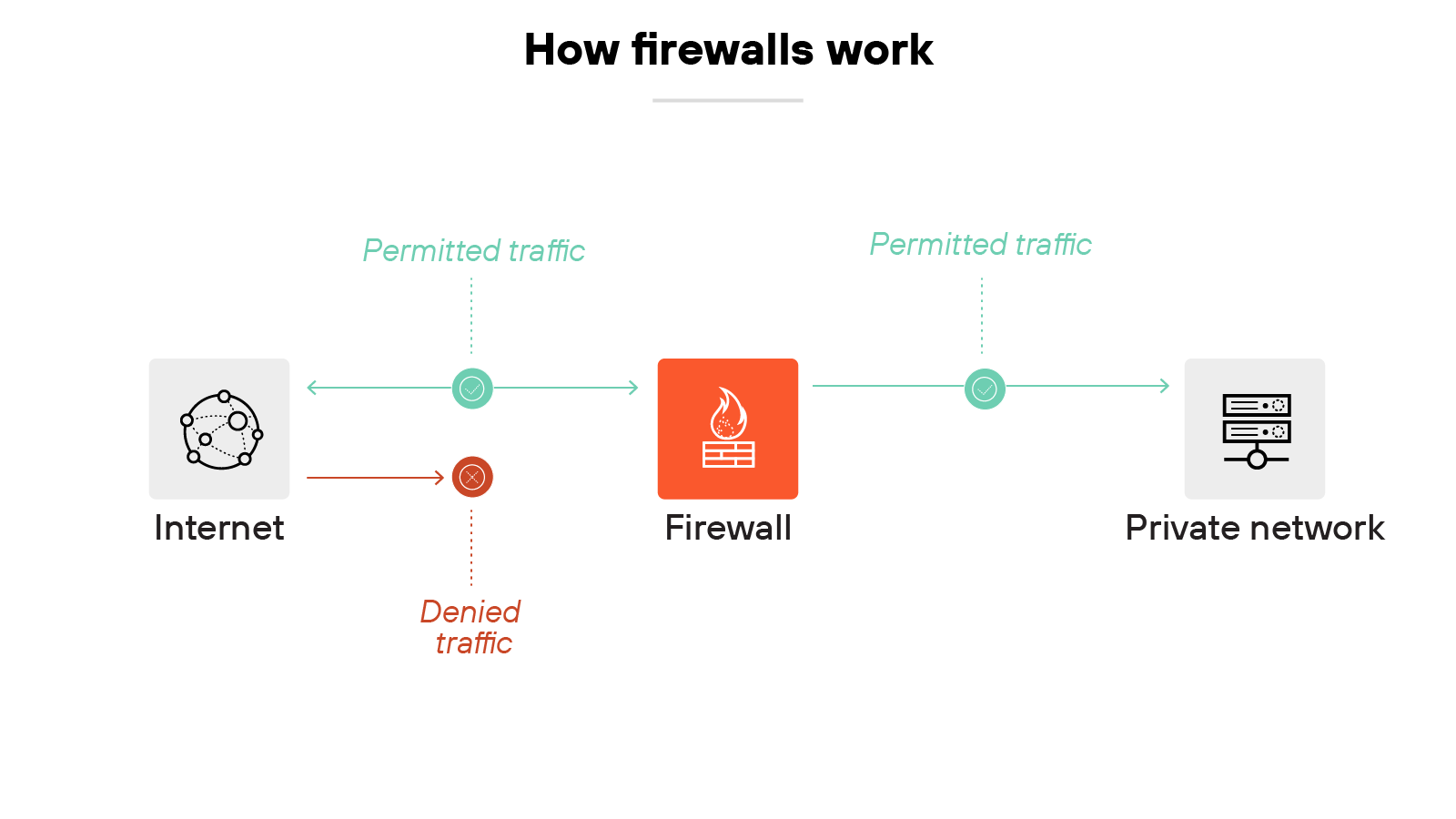

Architecture diagram titled

Most modern devices also perform stateful inspection. This allows the appliance to track active sessions and only permit packets that belong to a valid connection. In other words, the device doesn't just check individual packets. It understands their context within a session.

Here's how it works:

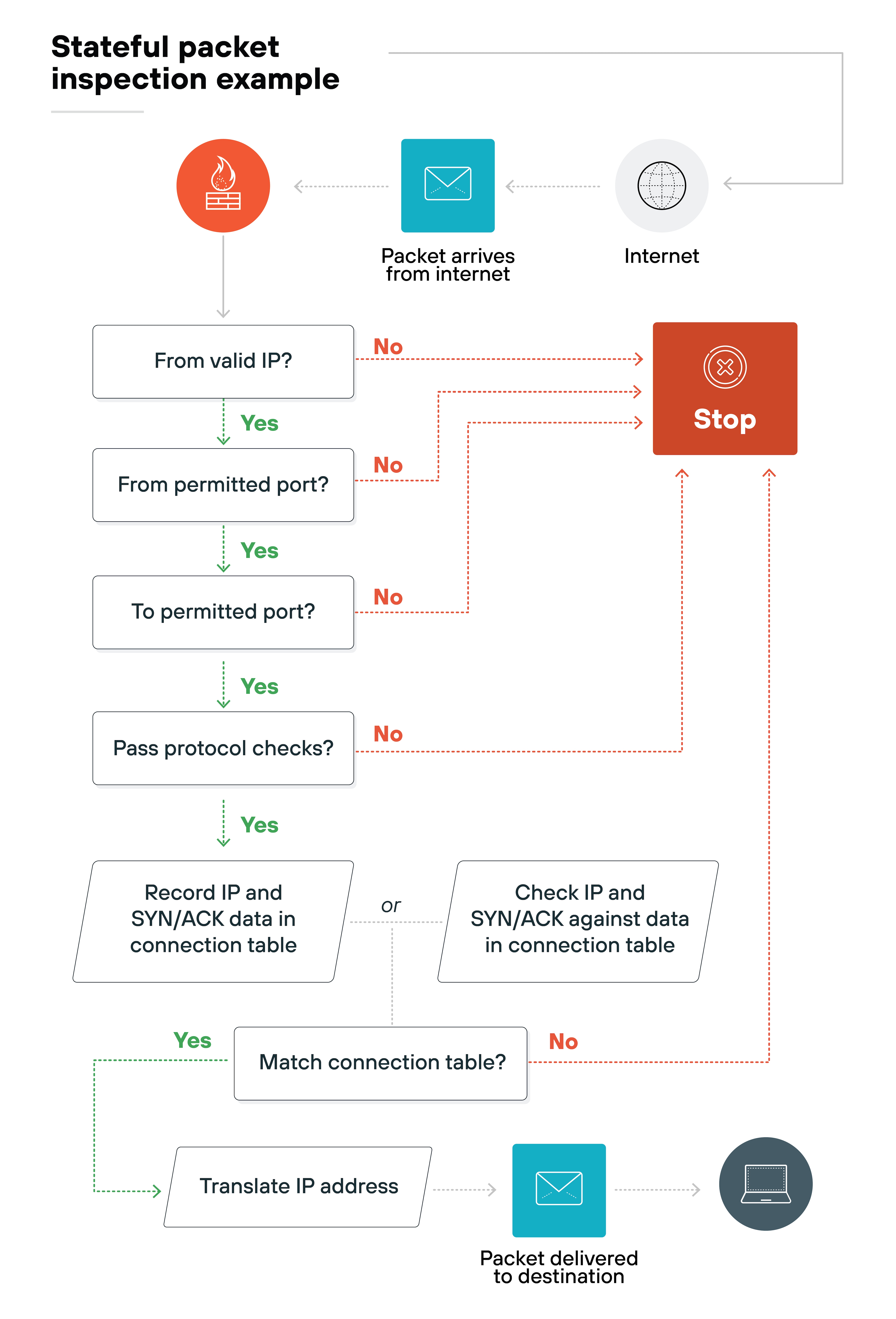

A vertical flowchart titled 'Stateful packet inspection example' shows the decision-making process for determining whether a packet from the internet is allowed through. At the top right, a globe icon labeled 'Internet' points to a blue envelope icon labeled 'Packet arrives from internet,' which connects to an orange firewall icon. From there, the packet is evaluated through a series of white decision boxes with green 'Yes' or red 'No' arrows. The boxes ask, in order: 'From valid IP?', 'From permitted port?', 'To permitted port?', and 'Pass protocol checks?' Red 'No' arrows from any decision point lead to a red stop icon with an X in a circle. If all answers are 'Yes,' the packet is either recorded in the connection table or compared against it, with white boxes showing 'Record IP and SYN/ACK data in connection table' or 'Check IP and SYN/ACK against data in connection table.' If it matches, a green arrow leads to 'Translate IP address' followed by the final blue envelope icon labeled 'Packet delivered to destination,' ending at a gray computer icon. Dotted lines are used for alternate flows and protocol verification steps.

Hardware firewalls use dedicated physical components to perform deep packet inspection. They can analyze packet payloads, identify applications, and enforce policies at higher layers of the OSI model. Many appliances integrate features such as intrusion prevention and SSL inspection, which help block hidden or evasive threats.

Processing is handled by custom chips, such as ASICs or NPUs, that accelerate packet inspection and cryptography. The chassis often includes redundant elements like power supplies, fans, and interface cards to ensure continuity if a component fails.

These design traits allow hardware firewalls to deliver consistent throughput independent of shared host resources.

Basically, the hardware firewall works by forcing all network traffic through a purpose-built device that inspects, tracks, and enforces rules at multiple layers before allowing it to pass.

| Further reading: What Does a Firewall Do? | How Firewalls Work



What do hardware firewalls offer?

A hardware firewall is distinct because it's delivered as a dedicated appliance rather than as software installed on general-purpose systems. That form factor brings its own characteristics.

For one, the device runs on purpose-built hardware.

Processing power, memory, and network interfaces are dedicated to packet inspection and policy enforcement. Because resources are dedicated to firewall tasks, performance is predictable within the rated capacity.

Note:
Purpose-built firewall hardware often includes acceleration chips for cryptography and packet processing, which helps sustain throughput under heavy encryption workloads.

Another distinction is physical connectivity.

Hardware firewalls provide multiple copper or fiber interfaces. They can be placed inline between networks and configured to support bypass ports, VLAN segmentation, or redundant uplinks.

Finally, hardware delivery supports turnkey operational and compliance needs (turnkey, out of the box).

Devices can be certified under standards such as FIPS, housed in tamper-resistant chassis, and physically controlled in data centers. These are requirements that can't be met in the same way by virtual or cloud-only firewalls.

Note:
Hardware firewalls can also meet environmental and physical requirements, such as controlled temperature ranges or tamper-evident seals, making them suitable for regulated or industrial facilities.

Ultimately, the security functions are the same across firewall hardware, software, and cloud models.

| Further reading:



Hardware firewalls vs. software and cloud firewalls

All firewalls share the same inspection logic. They evaluate traffic, compare it to policy, and allow or block connections.

The differences lie in how the firewall is delivered and where it can be deployed.

Hardware firewalls vs. software and cloud firewalls
Factor Hardware firewall Software firewall Cloud firewall
Form factor Physical appliance with dedicated CPU, memory, and interfaces Runs as a process on servers, VMs, or containers Runs in cloud provider infrastructure or delivered as Firewall as a Service (FWaaS)
Deployment Installed at network perimeters such as data centers or campuses Installed in virtualized data centers, branches, or container platforms Deployed directly in public cloud environments or consumed as a managed service
Performance model Predictable throughput based on purpose-built hardware Shares resources with host environment; scalable through orchestration Elastic scaling within cloud infrastructure; dependent on provider resources
Policy enforcement Centralized at the edge; applies rules consistently across devices on the internal network Applied close to workloads; supports segmentation and east–west traffic control Applied inside cloud workloads; ensures consistency across multi-cloud environments
Operational considerations Requires physical setup, refresh cycles, and hardware management Flexible, automated deployment; integrates with DevOps and orchestration tools Reduces local management; relies on provider availability and service model

In short:

  • Hardware firewalls excel at anchoring fixed network boundaries with dedicated performance and physical control.
  • Software firewalls extend protection into virtualized and distributed environments.
  • Cloud firewalls adapt the same functions for workloads and applications hosted in public cloud platforms.

Each firewall model addresses different deployment needs, and many organizations use them together for comprehensive coverage.

| Further reading:



When should you use a hardware firewall?

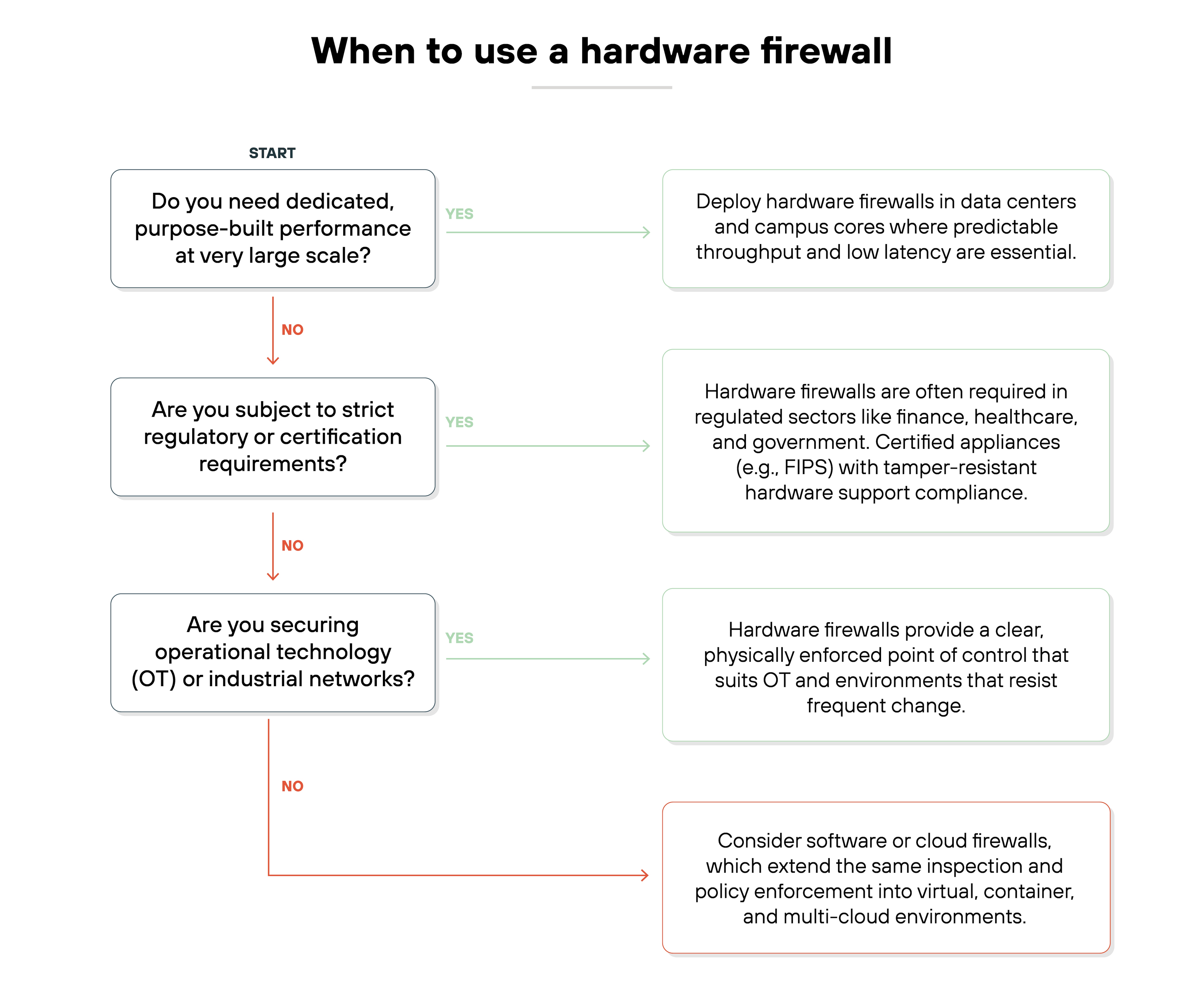

The image is a flowchart titled 'When to use a hardware firewall' in bold black text at the top. It begins with a box labeled 'START' followed by a question in a white box outlined in black that reads 'Do you need dedicated, purpose-built performance at very large scale?' A green arrow labeled 'YES' points to a white box on the right with text that says 'Deploy hardware firewalls in data centers and campus cores where predictable throughput and low latency are essential.' A red arrow labeled 'NO' continues downward to a new question in a white box outlined in black that reads 'Are you subject to strict regulatory or certification requirements?' A green 'YES' arrow points right to a white box stating 'Hardware firewalls are often required in regulated sectors like finance, healthcare, and government. Certified appliances (e.g., FIPS) with tamper-resistant hardware support compliance.' A red 'NO' arrow continues downward to a third white box outlined in black that asks 'Are you securing operational technology (OT) or industrial networks?' A green 'YES' arrow points right to a white box that says 'Hardware firewalls provide a clear, physically enforced point of control that suits OT and environments that resist frequent change.' A red 'NO' arrow leads to a final white box outlined in red with text that reads 'Consider software or cloud firewalls, which extend the same inspection and policy enforcement into virtual, container, and multi-cloud environments.'

Hardware firewalls remain the most common form factor in enterprise networks. They continue to serve as the foundation for many firewall strategies.

Why?

As discussed, a physical device provides predictable performance. It's purpose-built to handle inspection at scale, which makes it well suited for data centers and campus cores. If an organization needs to process large volumes of traffic with low latency, a hardware firewall is a practical choice.

Plus, regulated industries often require appliances with specific certifications. Again, hardware devices can be validated for standards such as FIPS. They can also be housed in tamper-resistant chassis and placed under physical control. These characteristics make them attractive to sectors like finance, healthcare, and government.

Operational technology and industrial networks are another area. In these environments, reliability and physical enforcement at the network boundary are critical. A stand-alone device provides a clear point of control in systems that may not tolerate frequent change.

Remember: This doesn't mean hardware is always the only answer.

Software and cloud firewalls extend the same functions into places where appliances cannot be deployed. Together, the models complement each other.

To sum up: Hardware firewalls should be used whenever predictable performance, physical control, or regulatory compliance are the main priorities. They continue to anchor enterprise security while other form factors expand coverage into new environments.

STAY AHEAD OF EMERGING CYBER THREATS
Read the Unit 42 2025 Incident Response Report to see how organizations are responding to today's attacks and strengthening resilience across their environments.

Download the report



Hardware firewall FAQs

Hardware firewalls provide a dedicated security layer, robust external threat protection, enhanced traffic management, and the capacity for advanced security functions like deep packet inspection and intrusion prevention.
A firewall can be either hardware or software. Hardware firewalls are physical firewall devices that provide a barrier between a network and external networks. Software firewalls are applications that manage network traffic at the host level. Both types enforce security measures to prevent unauthorized access and protect against threats.
For enterprises, a hardware firewall is essential to protect the network perimeter, manage data flow securely, and prevent unauthorized access to internal resources.
The three common types of firewalls are packet filtering, stateful inspection, and proxy firewalls, each offering varying degrees of security control.
A hardware firewall can be integrated into a router, but it is primarily a security device focused on network traffic control and threat prevention.
Use a hardware firewall when you need robust network protection, especially for enterprise environments where security, performance, and centralized control are priorities.
An example of a hardware firewall would be a next generation firewall device that offers features like intrusion prevention, application awareness, and threat intelligence.
A hardware firewall is typically placed at the network perimeter, between the internal network and the external connection point to the internet.
Choose a hardware firewall based on network size, security needs, performance requirements, compatibility with existing infrastructure, and potential for scalability.
Yes, hardware firewalls have IP addresses to manage traffic and enforce security policies based on source and destination IP criteria.
Hardware firewalls offer dedicated protection with minimal system impact, while software firewalls are more flexible and can be easily updated or configured.
The two primary types are hardware firewalls, physical devices providing network perimeter defense, and software firewalls, which run on host computers to filter traffic at the application level.
